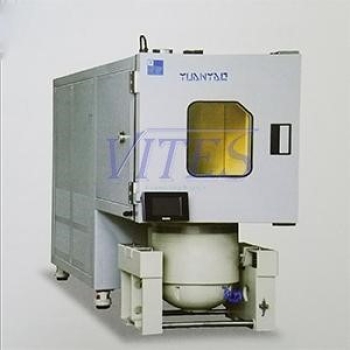

Đặc trưng
Một môi trường thử nghiệm toàn diện mô phỏng ba yếu tố môi trường trong cùng một buồng.
Hiệu suất cao, biến đổi nhiệt độ nhanh.
Có thể được sử dụng như một buồng thử nhiệt độ/độ ẩm riêng biệt
Model | YTHV-216 | YTHV-343 | YTHV-512 | YTHV-720 | YTHV-1000 |
Inner chamber size W×H×D(cm) | 60×60×60 | 70×70×70 | 80×80×80 | 90×90×90 | 100x100x10 |
Testing temperature range | -70℃,-60℃, -40℃, -20℃, 0℃~150℃, other temperature is available. | ||||
Testing humidity range | 20%RH~98%RH(low humidity10%RH~98%RH或5%RH~98%RH can be customized) | ||||
Temp.humi.fluctuation | ±0.3℃;±0.5%RH | ||||
Temp.humi.uniformity | ±2℃;±3%R 30min | ||||
Temp.humi.resolution | 0.01℃;0.1%RH | ||||
Heating&cooling time ℃/min | Customizable cooling rate requirements | ||||
Vibration test table performance | |||||
Force | 3KN,6KN, 10KN, 20KN, 30KN, 40KN, 50KN,etc. | ||||
Frequency range | 5Hz~3000Hz | ||||
Vibration direction | Vertical. vertical + horizontal | ||||
Maximum displacement | 25mm-51mm (p-p) | ||||
Maximum velocity | 2m/s | ||||
Maximum acceleration | 100g(empty load) | ||||
Vibration table | Customized with customer's requirement |
Model | YCTL-080 | YCTL-150 | YCTL-225 | YCTL-408 | YCTL-800 | YCTL-1000 |
Inner chamber sizeW×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 |
Exterior chamber sizeW×H×D(cm) | 60x172x120 | 121×160×125 | 121×175×135 | 131×185×155 | 171×200×155 | 171×200×175 |
Test temp.range | -60℃~150℃ | |||||
Temp.fluctuation | ±0.5℃(RP) | |||||
Temp.uniformity | ±2.0℃(RP) | |||||
Heating time | 3℃/min(+20℃~+150℃、RP、empty load) | |||||
Cooling time | 1℃/min(RP、empty load) | |||||
Pressure range | RP~0.5KPa | |||||
Pressure control error | ±0.2kPa(≤2kPa),±2(2kPa~40kPa),±5%(≥40kPa) | |||||
Depressurization time | ≤45min | |||||
Exterior chamber material | Colled sheet plate+Powder coating | |||||
Inner chamber material | SUS#304 stainless steel plate | |||||
Insulation material | PU | |||||
Air circulation system | Centrifugal fan | |||||
Heating system | SUS#stainless steel high speed heater | |||||
Cooling system | Compressor+condenser+evaporator | |||||
Components | Sample shelves 2pcs, electronical wire 1pcs(3m), pressure test port | |||||
Safety protection device | Overheat protection circuit breaker | |||||
Compressor overload protection | ||||||
Control system overload protection | ||||||
Overload indicator phase sequence protection | ||||||
High voltage and low voltage protection | ||||||
Over temperature protection | ||||||
Fan overcurrent protection | ||||||
Power supply | AC 3Ψ380V 60/50Hz | |||||
Customization service | Non-standard or special requirements are welcomed and available. |

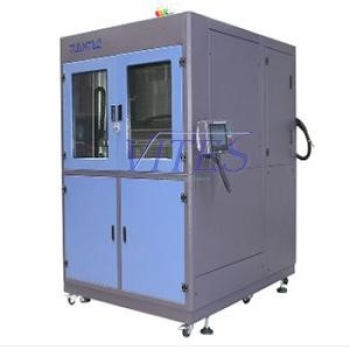

Liquid thermal shock test chamber | YTST-021-65-LW | YTST-041-65-LW |
Mode | DUT inside the test basket moves to left or right inside the baths | |
Inner chamber size WxHxD(cm) |
30x35x20 (2pcs) | 45*35*26 (2pcs) |
Heating time | RT+10℃~150℃<75 min | |
Cooling time | RT+10℃~-60℃< 80min | |
Precool temp range | -60℃~0℃ | |
Preheat temp range | +60℃~+150℃ | |
Temp shock range | -55℃~120℃ | |
Test time | 10 mins | 10 mins |
Temp tranfer time | About 30s | |
Resolution | 0.01℃ | |
Temp fluctuation | ±2℃ | |
Power supply | AC 3Ψ380V 60/50Hz | |
Customization service | Non-standard or special requirements are all welcome |
Buồng kiểm tra chống nước (Water proof test chamber)
Hãng sản xuất: Yuanyao
Xuất xứ: Trung Quốc
Sự miêu tả
Buồng kiểm tra chống nước dựa trên cấp bảo vệ, mô phỏng khí hậu mưa ngoài trời để thực hiện kiểm tra hiệu suất chống nước, xác định các sản phẩm đạt cấp bảo vệ tương ứng pr, để thiết kế, nghiên cứu và phát triển sản phẩm và kiểm tra nhà máy.
Ứng dụng
Máy kiểm tra khả năng chống nước chủ yếu áp dụng cho các sản phẩm truyền thông, phụ tùng ô tô (như gương chiếu hậu ô tô, âm thanh xe hơi, điện tử ô tô, đèn ô tô, đèn xe, đèn xe máy, gương xe máy), thiết bị chiếu sáng ngoài trời và tín hiệu.
Model No. | YSRT-500 | YSRT-1000 | YSRT-1728 | |
Inner chamber size W×H×D(cm) |
80×80×80
|
100x100x100 |
120x120x120 | |
Exterior chamber size W×H×D(cm) | 125×180×340 | 145x200x360 |
165x220x380 |
|
Rain drop area (IPX1-IPX2) | 60x60cm | 60x60cm, 80x80cm |
80x80cm, 100x100cm | |
Swing pipe radius (IPX3-IPX4) | 30cm | 40cm | 50cm | |
Rotary table diameter&load |
50cm,50KG
|
60cm,50KG |
80cm,50KG |
|
Spray nozzle diameter & jet distance (IPX5-IPX6) | 6.3mm(IPX5),12.5mm(IPX6); 2.5~3m | |||
Water flow and jet distance (IPX1-IPX6) | 1~1.5mm/min(IPX1),3~3.5mm/min(IPX2); 1.1L/min(IPX3),1.8L/min(IPX4); 12.5L±0.625L/min(IPX5),100±5L/min(IPX6) | |||
Rotating speed of rotary table | 1~5r/min,ajustable | |||
Material | Inner chamber | SUS#304 stainless steel plate | ||
External chamber | Cold rolled sheet + powder coating | |||
Other components | Indoor light, wiper, caster adjuster | |||
Power supply | AC 3Ψ 380V 60/50Hz | |||
Customization service | Non standrad special requirement can be customized. |

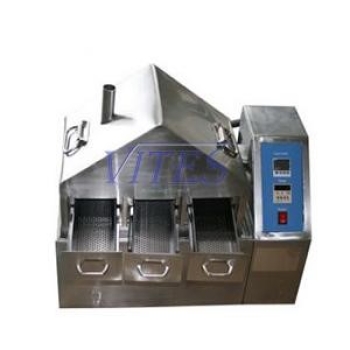

Model | YSA-3 | YSA-4 | YSA-5 |
Test area size W×D×H(cm) | 10×5.4×26 (3 sets) | 10×5.4×26 (4 sets) | 10×5.4×26 (6 sets) |
Exterior chamber size W×D×H(cm) | 53×70.5×54.9 | 68×70.5×54.9 | 83×70.5×54.9 |
Temperature range | RT+10℃~98℃ | ||
Temperature fluctuation | ±0.3℃ | ||
Temperature resolution | ±0.1℃ | ||
Heating time | 45 min | ||
Material | Exterior chamber material | SUS#304 Stainless steel | |
Interior chamber material | SUS#304 Stainless steel | ||
Insulation material | Fiberglass wool | ||
Heating system | SUS# Stainless steel high speed heater | ||
Control system | Button type digital display controller | ||
Safety devies | Overheat protection circuit breaker,dehydration and over-heat prevention mechanism,over-load indicator | ||
Power supply | AC 1 Phase 220V 60/50HZ | ||
Customization service | Non-standard or special requirements are all welcome |
Model | YDT-150A | YDT-200A | YDT-150B | YDT-200B | |
Type | Single arm lifting | ||||
Test Height | 30~150cm | 30~200cm | 300~150cm | 300~200cm | |
Max. size of specimen | 100x100x80cm | ||||
Max. weight of specimen | 85kg | ||||
Overall weight (approx.) | About 480kg | About 550kg | About 480kg | About 550kg | |
Overall size | 150x100x225cm | ||||
Baseplate size | 150x100x2cm | ||||
Control mode | Electronic control box | ||||
Height indicator | LCD display shows drop height | ||||
Height adjustment | Servo motor precision control | ||||
Buffer type | Oil pressure absorption | ||||
Power supply | AC 1Ψ 220V60/50Hz |

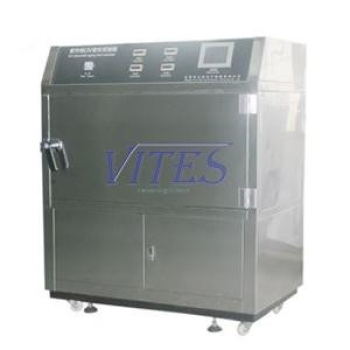

Buồng kiểm tra lão hóa UV (UV aging chamber) Hãng sản xuất: Yuanyao Xuất xứ: Trung Quốc
Giới thiệu chi tiết
Buồng thử nghiệm lão hóa UV thích hợp để kiểm tra thời tiết tăng tốc của sơn, mực, hóa chất, cao su, sơn, chất kết dính, vv. Nó có thể mô phỏng các điều kiện môi trường như tia cực tím, mưa, nhiệt độ cao, độ ẩm cao, ngưng tụ và bóng tối trong khí hậu tự nhiên. Bằng cách tạo lại các điều kiện này, chúng được kết hợp thành một chu kỳ và nó được tự động thực hiện để hoàn thành nhiều chu kỳ.
Đặc trưng:
1. Tấm nhôm đen được sử dụng để kết nối cảm biến nhiệt độ, và đồng hồ đo nhiệt độ bảng đen được sử dụng để điều khiển hệ thống sưởi, và nhiệt độ ổn định hơn. Đầu dò của máy đo phóng xạ được cố định và không yêu cầu tải và dỡ tải.
2. Lượng bức xạ được đo bằng màn hình và độ chính xác cao của máy đo bức xạ cực tím chuyên dụng.
3. Irradiance không quá 50 W/m2.
4. Chiếu sáng và ngưng tụ có thể được kiểm soát độc lập và kiểm soát chu kỳ thay thế.
5. Thời gian điều khiển độc lập để chiếu sáng và ngưng tụ và thời gian cho điều khiển chu kỳ thay thế có thể được đặt tùy ý trong vòng 1000 giờ.
Thông số kỹ thuật
Model | YUV-080 | |
Inner chamber sizeW×H×D(cm) | 40×50×40 | |
Exterior chamber sizeW×H×D(cm) | Depends on the chamber design | |
Performance | Temp.range | R.T.+10℃~+70℃ |
Humi.range | 75% RH~95%RH | |
Rain time | 1~9999mins,adjustable | |
Rain period | 1~240mins,interval adjustable | |

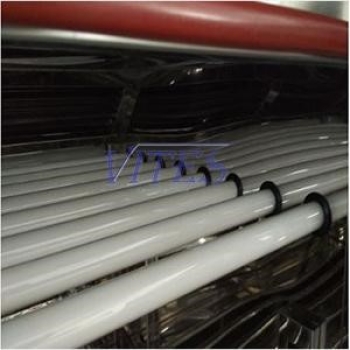

Light model | UV-A(295~360nm),UV-B(280~315nm)optional | |
UVA/UVB light power | 40W(lifetime 1800h) | |
Irradiance | 1.0W/m2 ajustable | |
Standard specimen size | 75x150mm/75x300mm | |
Control accuracy | ±0.1℃,±1%RH | |
System | Temp.controller | Imported LED digital display PID+SSR microcomputer integrator |
Sensor | Perkin resistance PT100Ω/MV | |
Time controller | Imported programmable time controller | |
Heating system | Nichrome heater | |
Condensation humidification system | Stainless steel humidifier | |
Blackboard temp. | Metal blackboard thermometer | |
Water supply system | Auto water filling sytem | |
Circulating system | Quiet motor,multi-vane centrifugal fan | |
Material | Exterior chamber material | Stainless steel |
Inner chamber material | SUS#304 stainless steel | |
Sample holder material | SUS#304 stainless steel | |
Standard configuration | Standard sample holder 24pcs,light tubes 8pcs(UVA/UVB) | |
Safety Protection | Leakage,short circuit,over temp.,water shortage,over current protection | |
Power supply | AC 1Ψ220V 60/50Hz | |
Operation condition | 5℃ ~+30℃ ≤85%R.H | |
Customization service | Non-standard or special requirement are welcomed and available. |

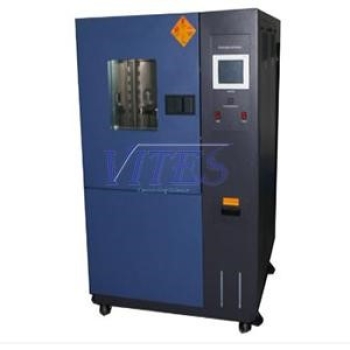

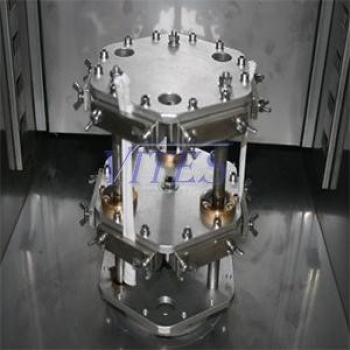

Giới thiệu chi tiếtModel No. | YOT-080 | YOT-150 | YOT-1000 |
Internal chamber size W×H×D (cm) | 40×50×40 | 50×60×50 | 100×100×100 |
External chamber size W×H×D (cm) | 90×140×95 | 100×150×105 | 150×190×155 |
Temperature range | RT~+80℃ | ||
Temperature fluctuation | ±0.5℃ | ||
Temperature uniformity | ±1.5℃(empty load, 30 mins after stablization) | ||
Resolution | 0.01℃ | ||
Ozone concentration | 0~1000PPHM, adjustable (Optional: 0-500ppm,non-standard ) | ||
Ozone control precision | ±10% | ||
Ozone generate mode | Electrostatic discharge | ||
Sample frame | Static and dynamic fixtures | ||
Sample frame speed | 360°rotation (1 circle/minute) | ||
Material | SUS#304 stailess steel for inner chamber, cold rolled sheet+powder coating for external chamber | ||
Insulation | PU | ||
Circulation system | Cooling fan | ||
Heating system | SUS# stainless steel high speed heater | ||
Controlling system | Digital electrinic indicator+SSR+PID | ||
Refrigeration system | compressor+Fin type evaporator+air/water cooling system | ||
Ozone concentration analyzer | Imported ozone concentration analyzer | ||
Ozone generator | Silent discharge ozone generator | ||
Other components | Controlling status indicator lamp Chamber light |
||
Safety protection device | Over-heat protection, phase sequence protection, overload protection | ||
Power supply | AC 1Ψ 220V; 3Ψ 380V 60/50Hz | ||
Customization service | Non-standard or special requirements can be customized. |
Buồng lão hóa thông gió cáp nóng (Air-ventilation aging chamber)
Hãng sản xuất: Yuanyao
Xuất xứ: Trung Quốc
Giới thiệu chi tiết
Buồng lão hóa thông gió nóng cáp thích hợp để kiểm tra khả năng chịu nhiệt của vật liệu cách điện, phụ tùng điện tử, kiểm tra lão hóa khí của các sản phẩm dẻo, để kiểm tra khả năng thích ứng của nó với bảo quản và vận hành trong điều kiện môi trường nhiệt độ cao, so sánh các đặc tính sau khi lão hóa trong không khí dưới nhiệt độ cao mô phỏng và áp suất khí quyển. Sản phẩm này đáp ứng các yêu cầu tiêu chuẩn thử nghiệm lão hóa nhiệt không khí JB / T7444 và JB / T3512-2001.
Đặc trưng:
Bộ điều khiển máy vi tính chương trình thông minh với chức năng định thời, điều khiển nhiệt độ chính xác và đáng tin cậy.
Được trang bị cửa sổ kính cường lực để quan sát các điều kiện bên trong buồng bất cứ lúc nào.
Được trang bị bàn quay tốc độ thấp.
Cách nhiệt được làm bằng bông cách nhiệt sợi thủy tinh siêu mịn để tránh nhiệt độ bề mặt của vỏ quá cao.
Thông số kỹ thuật
Model No. | YTAT-101 | YTAT-216 |
Test area size W×H×D(cm) | 45×50×45 | 60×60×60 |
Exterior chamber size W×H×D(cm) | 105×150×60 | 120×160×75 |
Temperature range | RT+25℃~200℃(300℃) | |
Temperature fluctuation | ±0.3℃ | |
Temperature uniformity | ±1%℃ | |
Temperature reslution | 0.1℃ | |
Heating-up time | 30min | 40min |
Exterior chamber material | Cold rolled sheet + powder coating | |
Interior chamber material | SUS#304 stainless steel plate | |
Insulation material | Fiberglass wool | |
Wind circulation | Centrifugal fan air circulation system | |
Heating system | SUS# Stainless steel high-speed heater | |
Controlling system | Button type digital display controller | |
Air exchange rate | 5~200(3~250)times/hour | |
Other components | Control status indicator, turntable / compartment shelf (2 freely adjustable) | |
Safety protection device | Phase sequence protection, over temperature protection, overload protection | |
Power supply | AC 3Ψ380V 60/50Hz | |
Customization service | Non-standard or special requirements can be customized. |

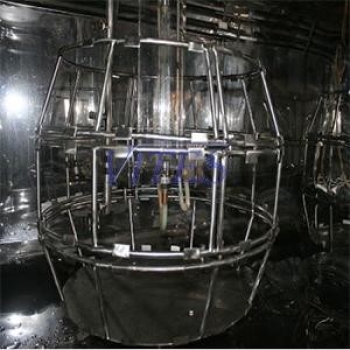

Buồng thử nghiệm lão hóa đèn Xenon (Xenon lamp aging test chamber)
Hãng sản xuất: Yuanyao
Xuất xứ: Trung Quốc

Giới thiệu chi tiết
Buồng thử nghiệm lão hóa đèn Xenon sử dụng đèn hồ quang Xenon mô phỏng phổ ánh sáng mặt trời đầy đủ để tái tạo sóng ánh sáng phá hủy trong các môi trường khác nhau, cung cấp mô phỏng môi trường và thử nghiệm nhanh cho nghiên cứu khoa học, phát triển sản phẩm và kiểm soát chất lượng.
Đặc trưng:
Được trang bị vòi phun đa hướng để thử nghiệm phun mưa.
Mưa phun, ánh sáng, nhiệt độ, độ ẩm, cường độ chiếu xạ, thời gian, tốc độ bàn xoay có thể được kiểm soát riêng.
Được trang bị một nhiệt kế bảng đen để điều chỉnh nhiệt độ thử nghiệm trong buồng.
Nhiều chức năng báo động.
Thông số kỹ thuật
Model No. | YXEL-216 | YXEL-343 | YXEL-512 | YXEL-1000 |
Internal chamber size W×H×D (cm) | 95x80x95 | 70x70x70 | 80x80x80 | 100x100x100 |
External chamber size W×H×D (cm) | 150x190x130 | 130x180x120 | 140x190x130 | 150x200x140 |
Working area temperature | RT~+70℃ | |||
Temperature fluctuation | ±2℃ | |||
Humidity range | 80~98%RH、30~98%RH | |||
Rain duration | 0~99.99H(adjustable) | |||
Rain cycle | 0~99H(adjustable) | |||
Wave length | 290~800nm | |||
Radiation intensity | 1000w/m2±200 | |||
Radiometer | Standard configuration | |||
Distance between sample holder and lamp | 300~375mm | |||
Sample holder Rotating speed | 1~5r/min | |||
External chamber material | Cold rolled sheet + Powder coating | |||
Inner chamber material | SUS#304 stainless steel | |||
Cycling system | Single cycle, centrifugal fan, split air duct structure | |||
Control system | Touch screen programmable controller | |||
Protection device | Overpressure, leakage, phase loss, over temperature, water shortage | |||
Power supply | AC 3Ψ380V 60/50Hz | |||
Standard device | Lamp 1pcs, guaze 1 pack. | |||
Test standard | GB/T14522-2008、GB16422.2-1999 | |||
Customization service | Non-standard or special requirements can be customized. |

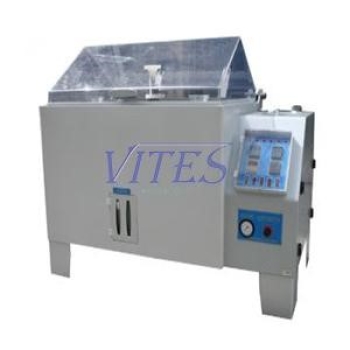

Model No.
|
YSST-108 |
YSST-270 |
YTST-600 |
|
Test area size
|
60×45×40
|
90×60×50
|
120×50×100
|
|
W×H×D cm
|
||||
Exterior chamber size
|
107×58×103
|
138×80×115
|
170×95×115
|
|
W×H×D cm
|
||||
Temperature range
|
Insidechamber Temperature
|
RT~50℃,±0.5℃
|
||
Air saturated bucket
|
RT~63℃,±0.5℃
|
|||
Temperature
|
RT~50℃,±0.5℃
|
|||
Saturated barrel air pressure(kg/m)
|
0.8~2.0
|
|||
Falling fog amount(m/80cm/hr)
|
0.5~3.0
|
|||
PH
|
Brine PH
|
6.5~7.2
|
||
PH value of Copper acetate
|
3.0~3.2
|
|||
Material
|
Exterior chamber material
|
PVC
|
||
Interior chamber material
|
PVC
|
|||
System
|
Spray system
|
Air acid (base) liquid
|
||
Heating system
|
SUS#304 Stainless steel high-speed heater
|
|||
Control System
|
Push-button digital display controller + timer + SSR + PID
|
|||
Other components
|
Hydrometer, salinity meter, mist collector,glass strip
|
|||
Safety devies
|
Overheat protection circuit breaker, dehydration and overheat prevention mechanism, overload indicator
|
|||
Power supply
|
AC 1Ψ 220V 50/60Hz
|
|||
Customization service
|
Non-standard or special requirements can be customized.
|
